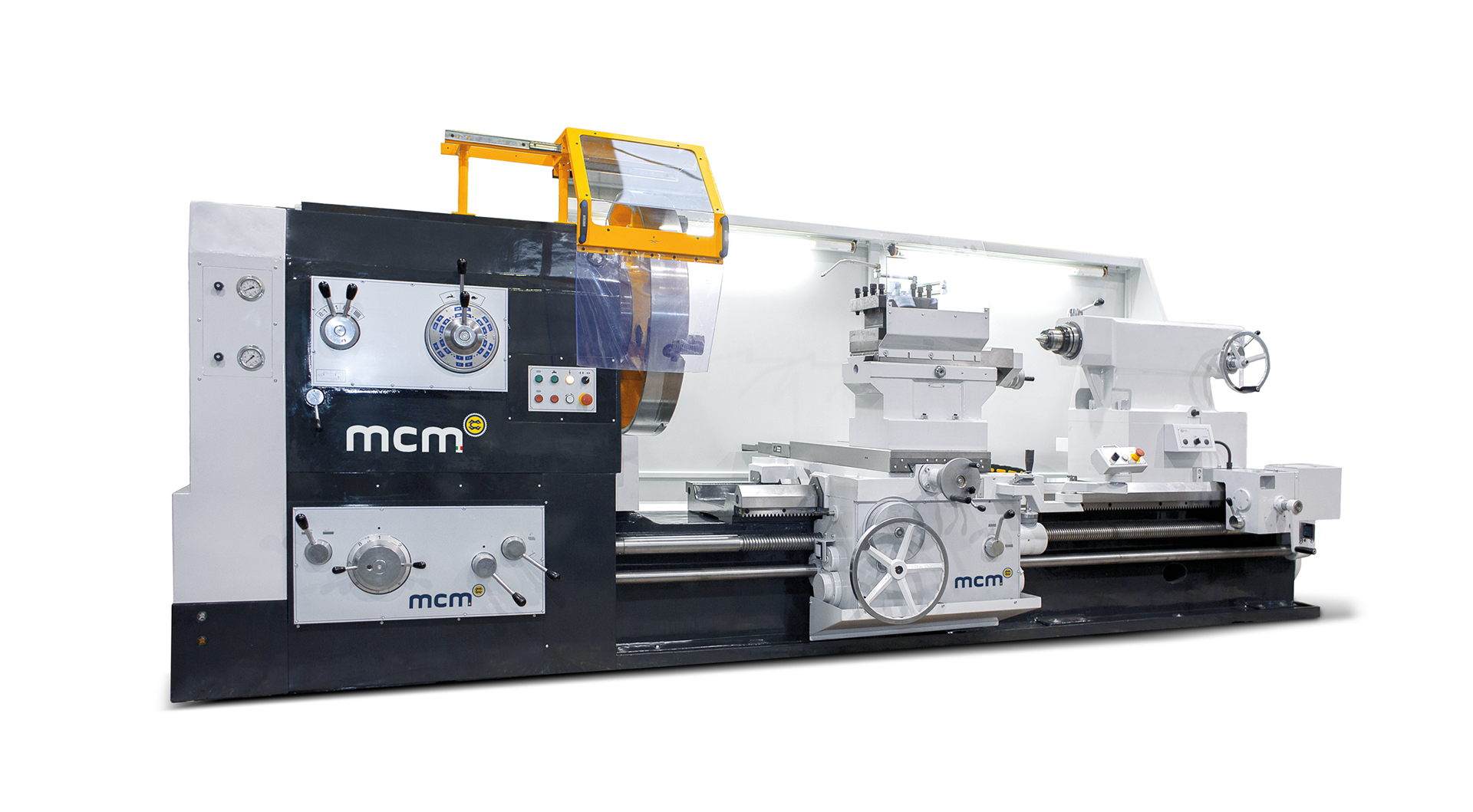

TC HEAVY PLUS
500 - 625 - 700 - 800
- Monolithic structure
- Powered small tool post
| Technical Specifications | 500 | 625 | 700 | 800L | |
|---|---|---|---|---|---|
| Height of centres | mm | 500 | 625 | 700 | 800 |
| Swing over bed | mm | 1000 | 1250 | 1400 | 1600 |
| Swing over cross slide | mm | 650 | 850 | 1000 | 1200 |
| Distance between centres | mm | 1.5-2-3-4-5-6-7-8-9-10-11-12-13-14-15-16 | |||
| Bed width | mm | 755 | |||
| Bed structure | Monolithic | ||||
| Spindle bore | mm | 130 | |||
| Spindle nose | ASA | 15" | |||
| Number of spindle speeds | N. | 21 | |||
| Spindle speed range | rpm | 3.15:315 | |||
| Main motor power (S1 - 100%) | Kw | 30 (37 - 45) | |||
| Cross slide travel | mm | 520 | 650 | 700 | 800 |
| Top slide travel | mm | 300 | |||
| Tailstock quill diameter | mm | 160 (Ø 200 rotating quill) | |||
| Tailstock quill travel | mm | 300 | |||
| Maximum weight of workpiece between centers | Kg | 10000 | |||
| Infinitely variable speed ( INVERTER ) with brake resistor | |||||
| Weigth | 500 | 625 | 700 | 800L | |
|---|---|---|---|---|---|
| Weight of the lathe of 3000 mm (D.B.C.) | Kg | 12500 | 13000 | 13500 | 14000 |
| Each additional meter | Kg | +2000 |
Standard equipment
- Bed – Headstock – Tailstock – Carriages made of cast iron
- Bed guideways are induction hardened and ground
- Headstock with induction hardened and ground gears; spindle is assembled on high accuracy bearings
- Carriages are sliding on antifriction material
- Monolithic structure
- Hydraulic clutch
- Hydraulic brake
- Powered small tool post
- Rapid feeds
- Powered displacement of tailstock along bed
- Electric plant with low voltage control panel; it is placed in a suitable airtight cabinet. Make of components is Siemens and/or Schneider
- Safety protections according to EC standards: plexiglas safety chuck guard with microswitch – turret plexiglas safety guard – rear protection along full length of the machine – protection of leadscrew and feed bars – emergency mushroom button
- Chip tank on wheels
- Cooling system with electro-pump
- Central lubrication of guideways with automatic pump
- Steady rest and follow rest
- Service tools and wrenches – Test certificate – Full electric diagram – Operation and maintenance book – Machine built according EC standards
Optional equipment
- Manual tool holder turret: Squared (4-way tool post) – Quick change turret – Indexing turret – Multifix turret
- 3 or 4 jaw self centering chuck
- 4-jaw independent chuck
- Live centre
- 2 or 3 axis digital readout
- Steady rest with larger Ø than standard one
- Roller support steady for heavy loads
- Work area lighting
- Cutting Surface Speed
- Variable spindle speeds (Inverter)
- Taper turning attachment
- Grinding equipment
- Levelling and anchoring pads
